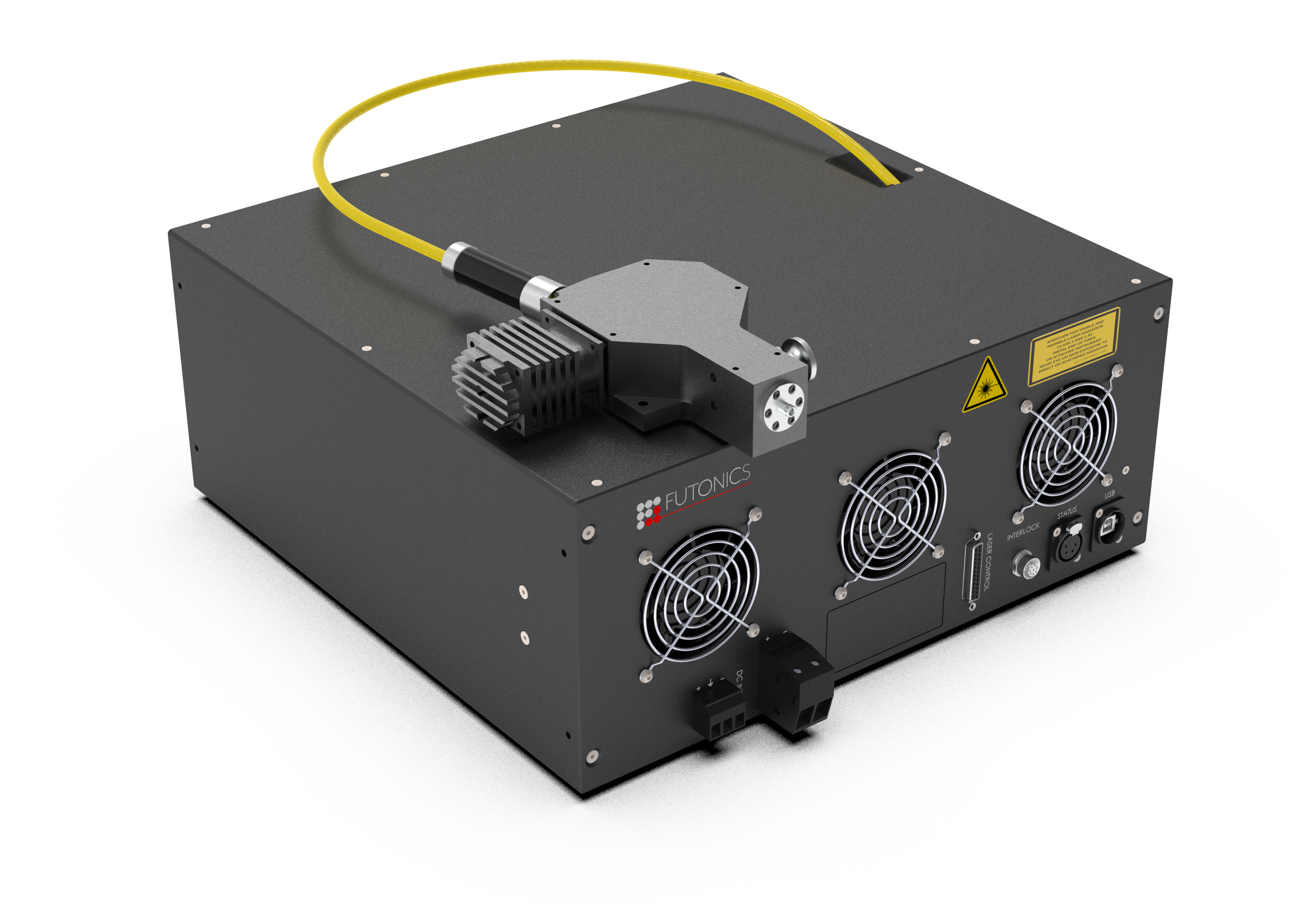

1200 W QCW / 120 W CW Air-Cooled Thulium Fiber Laser
High Power 2 µm Thulium Fiber Lasers
- 1200 W peak power
- Emission wavelength at the local absorption maximum of water
- Excellent beam quality for precise energy delivery
- High pulse-to-pulse stability
- Compact OEM-optimized design
- Air-cooled operation with low noise emission
- Maintenance-free architecture with high long-term stability
- Flexible system integration through customized interfaces
- Individual pulse shaping available
The new fiber laser module from Futonics is based on a thulium fiber laser oscillator with wavelength stabilization using Fiber Bragg Grating (FBG) technology. The combination of high peak power, excellent beam quality, thermal stability, and compact design enables its use in demanding medical and industrial OEM applications such as lithotripsy, soft tissue surgery, and precision material processing.
FEATURES
OPTICAL SPECS
- Output power: 1200 W QCW, 120 W CW
- Pulse energy: 10 J
- Wavelength: 1940 nm ± 20 nm
- Linewidth: < 0.4 nm FWHM
- Beam quality: M² < 1.2
- Operating modes: CW, QCW
- Repetition rate: 1 Hz – 3000 Hz
- Pulse duration: 30 µs – 50 ms
- Laser class: Class 4
- Fiber connector: Futonics standard connector
- Collimator: Optional
GENERAL SPECS
OPTIONS
